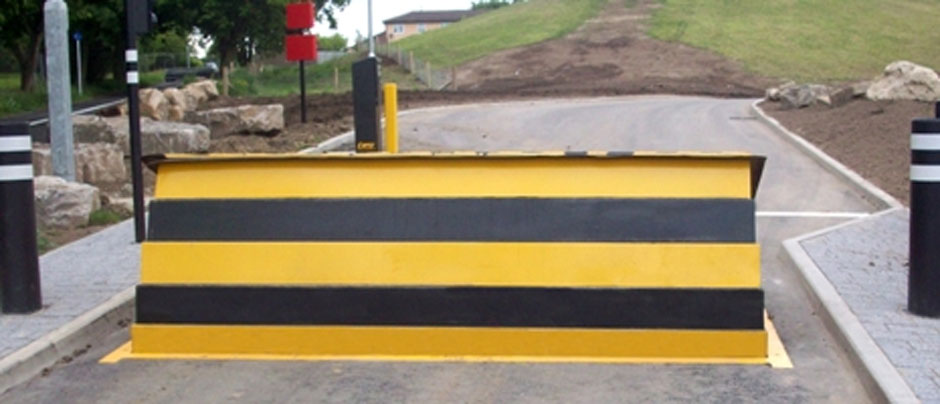

Technical specifications of Automatic road blocker
| Road blocker material | 6mm. mild steel sheet finished with polyester powder paint 75 microns |
| Road blocker dimensions | Length across roadway 2000 / 3000 mm.(L)* Width 2580 mm.(W)* 260 mm.(D), Raised height 950mm(H) |
| Design standard | BSI PAS68 stopping a net weight 7,500kg vehicle travelling both 80kph and 64kph |
| Bollard moving speed |
4 seconds at 3m. length. |
| Hydraulic pump and system controller | Hydraulic pump with PLC controller |
| Power supply | AC380-415V ±10%, 50Hz |
| Work environment | Indoor temperature:-40°C+50°C, Relative humidity:≤90%, non-condensing |
Applications
